High Thermal Conductive Two Component Potting Silicone For LED And Power Drive Potting

Produktdetails:

Herkunftsort:	CHINA
Markenname:	Ziitek
Zertifizierung:	RoHS
Modellnummer:	TIG680-15AB

Zahlung und Versand AGB:

Min Bestellmenge:	5 kg
Preis:	USD 1-100/KG
Verpackung Informationen:	1kg/can
Lieferzeit:	3-5 Arbeitstage
Zahlungsbedingungen:	Tt
Versorgungsmaterial-Fähigkeit:	10000KG/Month

Kontakt

Ausführliche Produkt-Beschreibung

Produktname:	Hochthermisch -leitfähige Zweikomponenten -Blüten -Silikon für LED- und Stromantriebs -Topf	Schlüsselwörter:	Wärmeleitfächer
Anwendung:	LED- und Power Drive -Topf	Wärmeleitfähigkeit:	1,5 ± 0,2 W/mk
Härte (Ufer A):	45±5	Farbe:	Grau
Empfohlene Betriebstemperatur (℃):	-45 ℃ bis 200 ℃	Dichte (g/cc):	2,35 ± 0,1

High Thermal Conductive Two Component Potting Silicone For LED And Power Drive Potting

Products description

TIG^®680-15AB is a two-part silicone potting adhesive with high thermal conductivity, room temperature curable, long working time and fire resistance. lt is especially suitable for capacitor, smal electronic equipment sealing. Its flexible, elastic characteristics enable it to provide cushioning for the materials it is coated with. The lower viscosity allows the thermal potting adhesive to cover the surface more fully, greatly increasing the efficiency of heat transfer from the heating device or the entire PCB to the metal case or diffusion plate, thus improving the efficiency and service life of the electronic components.

Feature

> Good thermal conductivity: 1.5±0.2 W/mK

> Good insulation performance
> Good elasticity
> Lower shrinkage
> Low viscosity,easy gas emissions
> Good solvent resistance and waterproof performance
> longer working hours
> Excellent high and low temperature resistance
> No odor release during the curing process

Application

> Industrial control, transformer,coil,amplifier, high voltage package,relay, high current junction box,etc
> Heat sink assembly, thermal sensor potting, thermal conductive product potting
> Heat conduction between the battery cell and the cold tube
> LED and power drive potting

Typical Properties of TIG^®680-15AB Series
Material Properties(before Curing)
Property	Numerical	Test Method
Color / Part A	White	Visual
Color / Part B	Gray	Visual
Part A Viscossity(mPa·s)	5000±1000	GB/T 10247
Part B Viscossity(mPa·s)	5000±1000	GB/T 10247
Mix Ratio	1:1	Ziitek Test Method
Shelf life	6 Months (Unopened)	Ziitek Test Method
Cure Schedule
Pot Life @25℃	30~45 mins	Ziitek Test Method
Cure @70℃	20~30 mins	Ziitek Test Method
Cure Material Properties
Color	Gray	Visual
Hardness (Shore A)	45±5	ASTM D2240
Density (g/cc)	2.35±0.1	ASTM D792
Recommended Operating Temp (℃)	-45~200	Ziitek Test Method
Flame Rating	V-0	UL 94
Thermal Conductivity (W/mK)	1.5±0.2	ASTM D5470
Breakdown Voltage(V/mm)	≥8000	ASTM D149
Dielectric Constant@1MHz	5.0~7.0	ASTM D150
Volume Resistivity (Ohm-cm)	1.0*10¹⁴	ASTM D257

Storage

1. Store the potting compound in the original unopened container;
2. Store in a cool and dry place to ensure the proper shelf life.

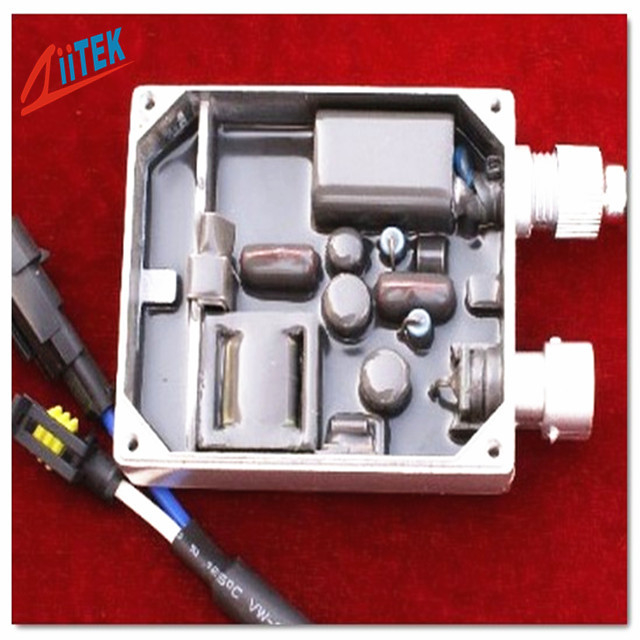

High Thermal Conductive Two Component Potting Silicone For LED And Power Drive Potting 0

Company profile

Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials.

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract.

5.Free sample offer.

6.Quality assurance contract.

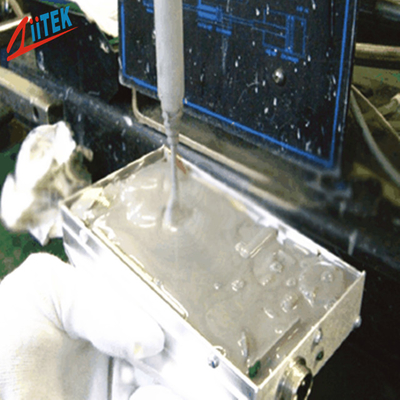

High Thermal Conductive Two Component Potting Silicone For LED And Power Drive Potting 1

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
