Herkunftsort: | CHINA |
Markenname: | Ziitek |
Zertifizierung: | UL & RoHS |
Modellnummer: | TIF100-05ES |
Min Bestellmenge: | 1000 Prozent |
---|---|
Preis: | 0.1-10 USD/PCS |
Verpackung Informationen: | 24*13*12 cm Kartons |
Lieferzeit: | 3-5 Arbeitstage |
Zahlungsbedingungen: | T/t |
Versorgungsmaterial-Fähigkeit: | 1000000 PCs/Monat |
Produktname: | Wirtschaftliches 1,5 W thermisches Silikon-Pad, thermisch leitendes Lückenfüller-Silikon-Pad, hochle | Schlüsselwörter: | thermische Auflage des Silikons |
---|---|---|---|
Dielektrikumspannung: | > 5500 VAC | Probe: | Probe frei |
Dicke: | 0,020 "~ 0,200" (0,5 mm ~ 5,0 mm) | Brandbewertung: | 94 v0 |
Dielektrizitätskonstante: | 4.5 MHz | Wärmeleitfähigkeit: | 1,5 W/m-K |
Farbe: | Blau | Anwendung: | CPU, Autobatterie, Stromversorgung |
Hervorheben: | 1.5W thermal silicone pad,CPU thermal conductive gap filler,high conductive silicone heat sink pad |

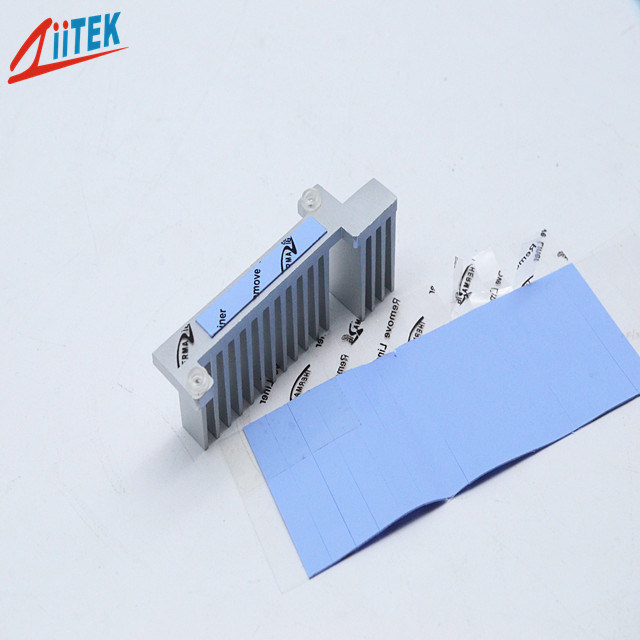

Economical 1.5W Thermal Silicone Pad Thermal Conductive Gap Filler Silicone Pad High Conductive Silicone Thermal Pad For CPU
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
Ziitek TIF®100-05ES Series is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized

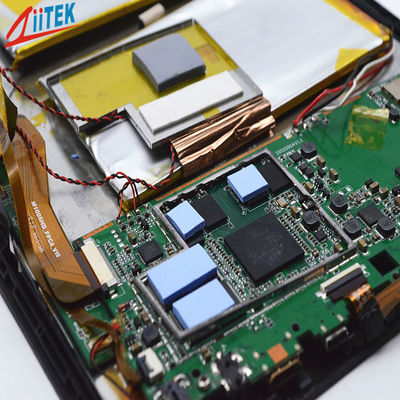

Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
Typical Properties of TIF®100-05ES Series | |||
Property | Value | Test method | |
Color | Blue | ****** | |
Construction &Compostion | Ceramic filled silicone elastomer | ****** | |
Thickness range | 0.020"(0.5mm)~0.200"(5.0mm) | ASTM D374 | |
Specific Gravity | 2.0g/cc | ASTM D297 | |
Hardness | 12±5 Shore 00 | ASTM 2240 | |
Continuos Use Temp | -45 to 200℃ | ****** | |
Dielectric Breakdown Voltage | > 5500 VAC | ASTM D149 | |
Dielectric Constant | 4.5 MHz | ASTM D150 | |
Volume Resistivity | 1.0 X1012 Ohm-meter | ASTM D257 | |
Flame rating | 94 V0 | UL E331100 | |
Thermal conductivity | 1.5 W/m-K | ASTM D5470 |
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
