Name: High Conductivity Thermal Gel 5.0W/MK Insulation Thermal Conductive Gel Suitable For PCB Applications
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF050-11-1
Price: 49.10 USD
Availability: InStock

Startseite Produkte Wärmeleitendes Gel

High Conductivity Thermal Gel 5.0W/MK Insulation Thermal Conductive Gel Suitable For PCB Applications

Produktdetails:

Herkunftsort:	CHINA
Markenname:	Ziitek
Zertifizierung:	UL
Modellnummer:	TIF050-11-1

Zahlung und Versand AGB:

Min Bestellmenge:	1000Rohre
Preis:	0.1-100USD/KG
Verpackung Informationen:	300cc/PCS, 6PCS/Box
Lieferzeit:	3-8 Arbeitstage
Zahlungsbedingungen:	T/t
Versorgungsmaterial-Fähigkeit:	10000KG/Month

Kontakt

Ausführliche Produkt-Beschreibung

Produktname:	Wärmeleitfähiges Gel mit hoher Leitfähigkeit, 5,0 W/MK-Isolierung, wärmeleitendes Gel, geeignet für	Spezifische Schwerkraft:	3.25 g/cc
Farbe:	Dunkelgrau	Materail:	Keramisches gefülltes Siliziummaterial
Durchbruchspannung (V/mm):	≥ 6000	Wärmeleitfähigkeit:	5.0W/m-k
Stichwort:	Thermalgel	Anwendung:	PCB-Anwendungen
Dielektrische Konstante @1MHz:	7,7

High Conductivity Thermal Gel 5.0W/MK Insulation Thermal Conductive Gel Suitable For PCB Applications

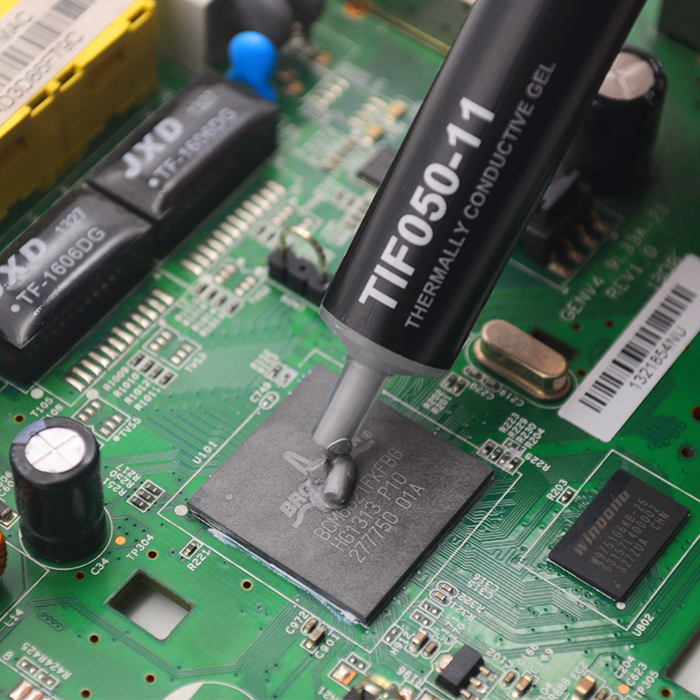

TIF^®050-11-1 is a thermally conductive paste with excellent interface thermal resistance characteristics and outstanding plasticity, capable of fully meeting the strict thermal management performance requirements of various designs; this material has extremely low hardness, possesses free-forming ability, and is easy to construct and assemble, demonstrating good stability in high-temperature environments. Its low-stress characteristics are particularly suitable for electronic devices that require high precision and high reliability, effectively reducing the mechanical stress on sensitive components during assembly and operation, ensuring the long-term stable operation of products in various application environments.

Feature

> Thermal conductivity: 5.0 W/mK
> Low stress, protect sensitive components.
> Strong plasticity. good stability
> Superior dielectric properties

Application

> Power module
> LED backlight module, LED lighting
> High speed hardware driver
> Micro heat pipe
> Vihicel enginee controller
> Telecom industry
> Semiconductor automatic laboratory equipment

TIF^®050-11-1 Typical Properties
Property	Value	Test method
Color	Dark Gray	Visual
Construction & Composition	Ceramic filled silicon material	******
Density(g/cm³)	3.25g/c	ASTM D792
Thermal conductivity	5.0W/mK	ASTM D5470
Breakdown Voltage (V/mm)	≥6000	ASTM D149
Dielectric constant @1MHz	7.7	ADTM D150
Flame Rating	V-0	UL 94
Volume resistivity(Ohm.cm)	8.0 X 10¹³	ASTM D257

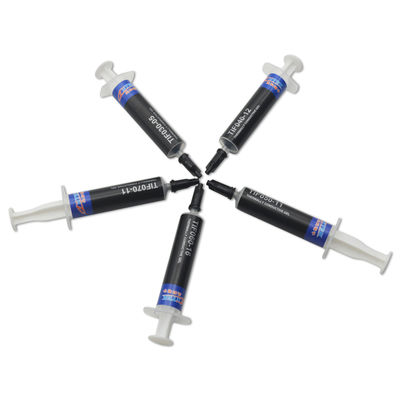

Packing details

30 cc/pc, 98 pc/box;

300 cc/pc , 6 pc/box

We offer the custom packaged in syringes for automated despensing applications.

Please contact us for confirming.
