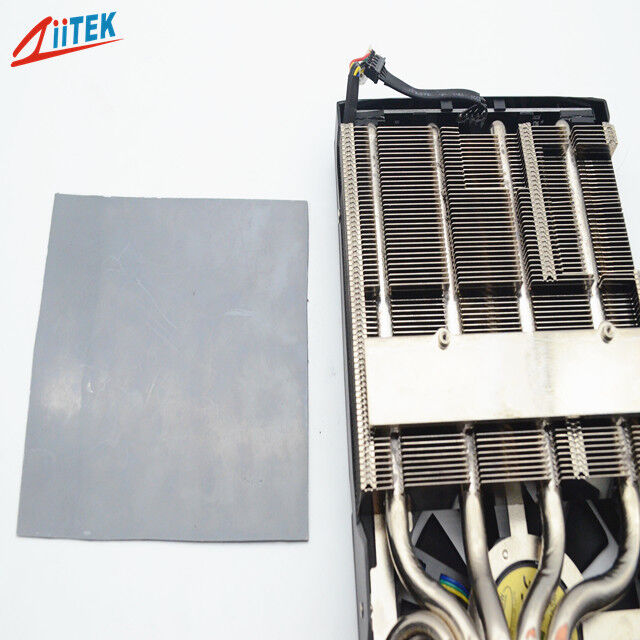

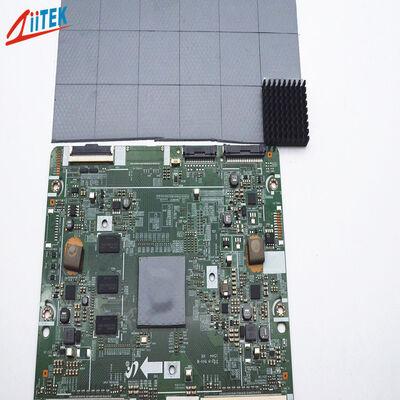

Name: Multiple Thickness CPU High Thermal Conductivity Die Cut Silicon Thermal Pad For AI Processors AI Servers
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF700PU
Price: 4.10 USD
Availability: InStock

Startseite Produkte Silikonthermalauflage

Multiple Thickness CPU High Thermal Conductivity Die Cut Silicon Thermal Pad For AI Processors AI Servers

Produktdetails:

Herkunftsort:	China
Markenname:	Ziitek
Zertifizierung:	UL & RoHS
Modellnummer:	TIF700PU

Zahlung und Versand AGB:

Min Bestellmenge:	1000 Stück
Preis:	0.1-10 USD/PCS
Verpackung Informationen:	242312cm Kartons
Lieferzeit:	3-5 Werktage
Zahlungsbedingungen:	T/T
Versorgungsmaterial-Fähigkeit:	1000000 PCs/Monat

Kontakt

Ausführliche Produkt-Beschreibung

Produktname:	Mehrfach dicke CPU mit hoher Wärmeleitfähigkeit, gestanztes Silikon-Wärmeleitpad für AI-Prozessoren,	Wärmeleitfähigkeit:	7.5W/m-K
Anwendung:	KI-Server KI-Prozessoren	Dickenbereich:	0,5–5,0 mmT
Schlüsselwörter:	thermische Auflage des Silikons	Dielektrische Konstante @1MHz:	4.5
Farbe:	Grau	Durchbruchspannung (V/mm)）:	≥5500
Brandbewertung:	UL94 V-0	Konstruktion:	Mit Keramik gefüllte Silikonelastomer

Multiple Thickness CPU High Thermal Conductivity Die Cut Silicon Thermal Pad For AI Processors AI Servers

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

The TIF^®700PU Series an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies,such as large tolerances, uneven surfaces,and the susceptibility of delicate components to mechanical damage.

Features

> Excellent thermal conductivity:7.5 W/mK

> Extremely soft,low compression stress effectively protects sensitive components
> Self-adhesive without the need for additional surface adhesives
> High insulation performance

Applications

> Al Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations

Typical Properties of TIF^®700PU Series
Property	Value		Test method
Color	Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.45		ASTM D792
Thickness Range(inch/mm)	0.020~0.030 (0.50~0.5)	0.040~0.200 (1.0~5.0)	ASTM D374
Hardness (Shore OO)	70	27	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		***
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	4.5 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	7.5 W/m-K		ASTM D5470
	7.5 W/m-K		ISO22007

Product Specifications

Standard Thickness:0.02" (0.50 mm)~0.20" (5.00 mm) with increments of 0.01" (0.25 mm)
Standard Size: 16"X 16" (203 mmX406 mm)

Component Codes:
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Multiple Thickness CPU High Thermal Conductivity Die Cut Silicon Thermal Pad For AI Processors AI Servers 0

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials.

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract.

5.Free sample offer.

6.Quality assurance contract.

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.
