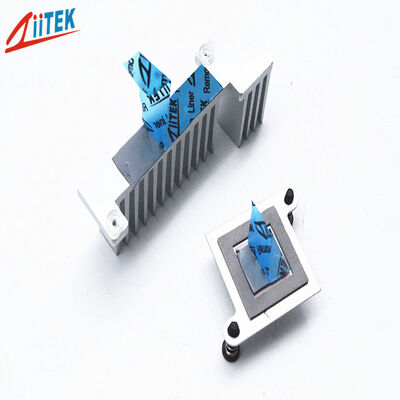

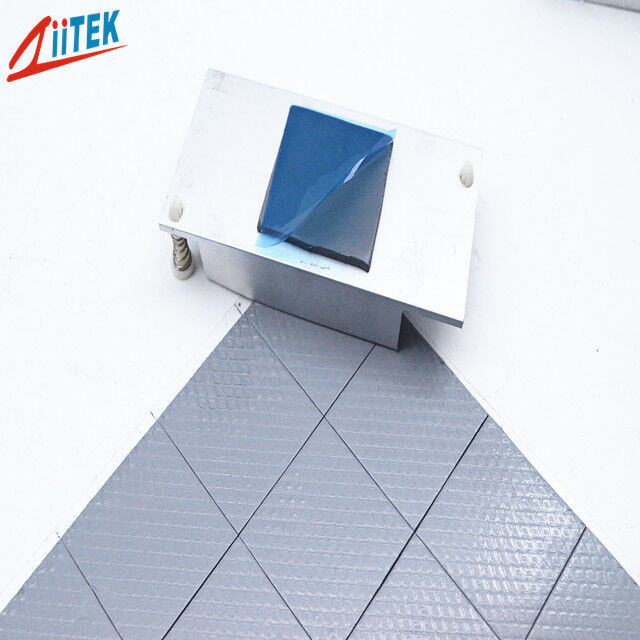

Thermal Gap Filler Designed To Provide Thermal Conductivity Of 2.0W/mK For Electronics Cooling Applications

Thermal Gap Filler Designed To Provide Thermal Conductivity Of 2.0W/mK For Electronics Cooling Applications

Produktdetails:
Herkunftsort: China
Markenname: Ziitek
Zertifizierung: UL and RoHs
Modellnummer: TIF100-20-10E
Dokumentieren: TIF100-20-10E_Data Sheet.pdf
Zahlung und Versand AGB:
Min Bestellmenge: 1000 Stk
Preis: 0.1-10 USD/PCS
Verpackung Informationen: 24*13*12cm Karton
Lieferzeit: 3-8 Werktage
Zahlungsbedingungen: T/T
Versorgungsmaterial-Fähigkeit: 100.000 Stück/Monat
Kontakt
Ausführliche Produkt-Beschreibung
Produktname: Thermischer Lückenfüller, der eine Wärmeleitfähigkeit von 2,0 W/mK für elektronische Kühlanwendungen thermisches leitfähiges: 2,0 W/mK
Härte: 65/35 Shore 00 Probe: Kostenlose Probe
Farbe: Grau Dicke: 0,010 "(0,25 mm) ~ 0,200" (5,0 mm)
Dichte: 20,7 g/cm3 Schlüsselwörter: Wärmespaltfüller
Konstruktion: Mit Keramik gefülltes Silikonelastomer Anwendung: Elektronikkühlungsanwendung

Thermal Gap Filler Designed To Provide Thermal Conductivity Of 2.0W/mK For Electronics Cooling Applications

Products description


The TIF®100-15-01F Series is a structurally supportive thermal pad designed to provide good heat dissipation while also ensuring structural support and durability. It can reliably fillinterfacegaps,transfer heat,and offer mechanical support for stacked components, resisting compressive deformation. This product is an ideal choice for applications that require a balance between heat dissipation,insulation,
and mechanical stability.


Features

> Good thermal conductivity
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesive
> Good insulation performance

Applications

> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers
> Home appliance industry
> Power module
> Wearable device
> Solar photovoltaic panel
> LED lighting fixtures

Key attributes


Typical Properties of TIF®100-20-10E Series
Property Value Test method
Color Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 2.7 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.00)
Hardness (Shore 00) 65 35 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant @1MHz 5.0 ASTM D150
Volume Resistivity(Ohm-meter) >1.0X1012  ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity(W/m-K) 2.0 ASTM D5470
2.0 ISO22007



Product Specifications


Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16" X16" (406 mm X406 mm).


Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


The TIF®series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.



Thermal Gap Filler Designed To Provide Thermal Conductivity Of 2.0W/mK For Electronics Cooling Applications 0


Packaging Details & Lead time


The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized


Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
