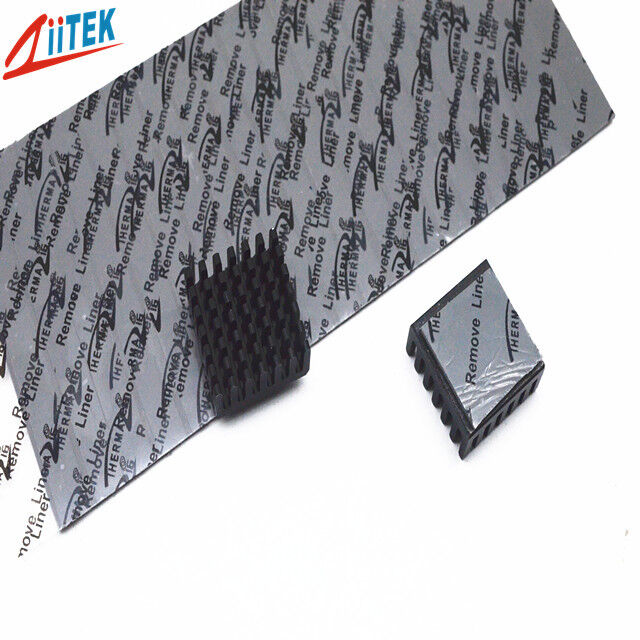

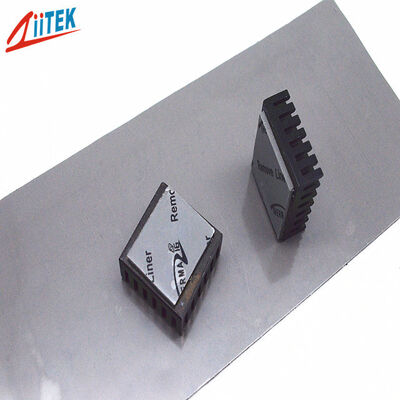

Ultra-Soft 10W/mK Thermal Pad with Ceramic Filled Silicone for High-End Chip Cooling

Produktdetails:

Herkunftsort:	China
Markenname:	Ziitek
Zertifizierung:	UL and RoHs
Modellnummer:	TIF100 10020-11
Dokumentieren:	TIF100 10020-11_Data Sheet.pdf

Zahlung und Versand AGB:

Min Bestellmenge:	1000 Stk
Preis:	0.1-10 USD/PCS
Verpackung Informationen:	241312cm Karton
Lieferzeit:	3-8 Werktage
Zahlungsbedingungen:	T/T
Versorgungsmaterial-Fähigkeit:	100.000 Stück/Monat

Kontakt

Ausführliche Produkt-Beschreibung

Produktname:	Ultra Performance 10 W/mK Wärmeleitpad füllt Lücken effektiv im Pad für High-End-Chips	thermisches leitfähiges:	10.0W/mK
Härte:	20 Ufer 00	Probe:	Kostenlose Probe
Farbe:	Dunkelgrau	Dicke:	0,012"~0,200"/(0,30~5,0mm)
Dichte:	3,3g/cm³	Schlüsselwörter:	Silikon-Thermopad
Konstruktion:	Mit Keramik gefülltes Silikonelastomer	Anwendung:	High-End-Chip

Ultra Performance 10W/mK Thermal Pad Effectively Fill Gaps Pad For High-end Chip

Product Description

The TIF®100 10020-11 Series is an ultra-soft thermal interface material specifically designed to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with exceptional gel-like softness, achieving a low-stress perfect fit. It effectively addresses issues in high-precision assemblies, including large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.

Features

Excellent thermal conductivity 10.0W/mK
Super soft and highly compliant
Self-adhesive without the need for additional surface adhesives
High insulation performance

Applications

AI Servers
Semiconductor Packaging
Low-Altitude Aircraft
Optical Communication Products
5G Base Stations

Typical Properties of TIF®100 10020-11 Series

Property	Value	Test Method
Color	Dark White	Visual
Construction & Composition	Ceramic filled silicone elastomer	******
Density (g/cm³)	3.3	ASTM D792
Thickness Range (inch/mm)	0.012~0.020 \| 0.030~0.200 0.30~0.50 \| 0.75~5.0	ASTM D374
Hardness (Shroe 00)	20 \| 20	ASTM 2240
Recommended Operating Temperature	-40 to 200℃	******
Breakdown Voltage (V/mm)	≥5500	ASTM D149
Dielectric Constant @ 1MHz	6.4	ASTM D150
Volume Resistivity	＞1.0×10¹² Ohm-meter	ASTM D257
Flame Rating	V-0	UL 94 (E331100)
Thermal Conductivity	10.0W/m-K 10.0 W/m-K	ASTM D5470 ISO22007

Product Specifications

Standard Thickness: 0.012" (0.30 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"x16" (406 mm x 406 mm)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

Packaging Details & Lead Time

Packaging of Thermal Pad:

With PET film or foam for protection
Use paper card to separate each layer
Export carton inside and outside
Meet with customers' requirement - customized

Lead Time:
Quantity (Pieces): 5000
Est. Time (days): To be negotiated
