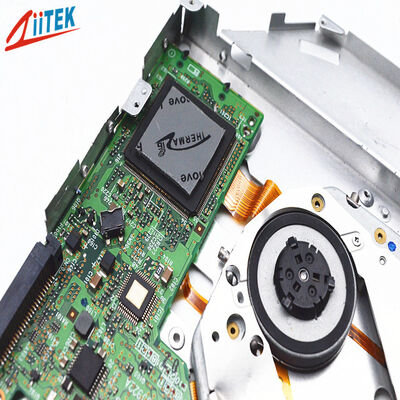

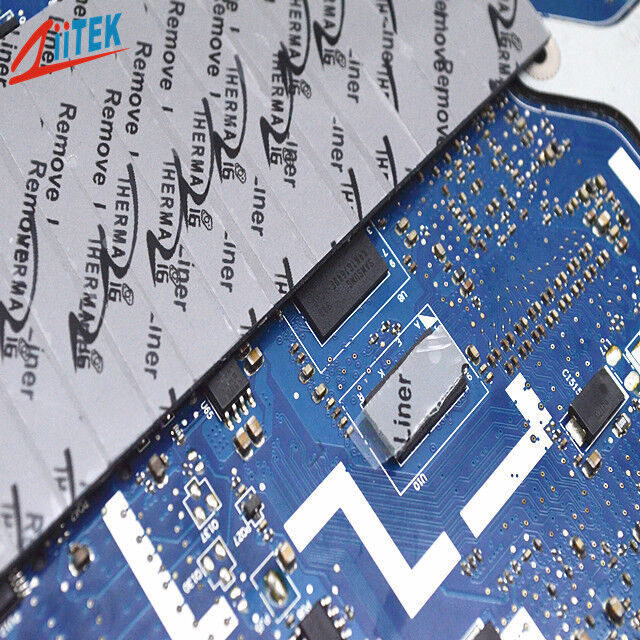

UL And RoHs Certificated High Conductivity 3W Self Adhesive Thermal Gap Pad For Computer CPU/GPU Cooling

UL And RoHs Certificated High Conductivity 3W Self Adhesive Thermal Gap Pad For Computer CPU/GPU Cooling

Produktdetails:
Herkunftsort: China
Markenname: Ziitek
Zertifizierung: UL & RoHS
Modellnummer: TIF100-30-11E
Zahlung und Versand AGB:
Min Bestellmenge: 1000 Stück
Preis: 0.1-10 USD/pcs
Verpackung Informationen: 24*13*12cm Kartons
Lieferzeit: 3-5 Werktage
Zahlungsbedingungen: T/T
Versorgungsmaterial-Fähigkeit: 1000000 PCs/Monat
Kontakt
Ausführliche Produkt-Beschreibung
Produktname: UL- und RoHs-zertifiziertes selbstklebendes 3-W-Thermo-Gap-Pad mit hoher Leitfähigkeit für die CPU-/ Anwendung: Computer-CPU-/GPU-Kühlung
Dicke: Erhältlich in verschiedenen Stärken Spezifisches Gewicht: 30,0 g/cm3
Durchbruchspannung (V/mm)): ≥5500 Wärmeleitfähigkeit: 3.0W/m-K
Farbe: Dunkelgrau Schlüsselwörter: Thermal Gap Pad
Betriebstemp: -40 ~ 200 ℃

UL And RoHs Certificated High Conductivity 3W Self Adhesive Thermal Gap Pad For Computer CPU/GPU Cooling



 Company Profile

Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:
Thermal gap pad
Thermal graphite sheet/film
Thermal double-sided tape
Thermal insulation pad
Thermal grease
Phase change material
Thermal gel
All products are compliant with UL94 V-0, SGS and ROHS standards.
Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL

Product introduction



TIF®100-30-11E Series is a wellbalanced, general-purpose thermal pad. It offers high thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.



Features


> High thermal conductivity: 3.0W/mK

> Good softness and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance



Applications



> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems

> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers

> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator



Typical Properties of TIF®100-30-11E Series
Property Value Test method
Color Dark Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.0 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.00)
Hardness 65 Shore 00 35 Shore 00 ASTM 2240
Continuos Use Temp -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 7.0 MHz ASTM D150
Volume Resistivity >1.0X1012 Ohm-meter ASTM D257
Thermal Conductivity (W/m-K) 3.0 ASTM D5470
3.0 ISO22007
Fire rating V-0 UL 94 (E331100)



Product Specifications
Standard Thickness:0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size:16"X16" (406 mmX406 mm)


Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

UL And RoHs Certificated High Conductivity 3W Self Adhesive Thermal Gap Pad For Computer CPU/GPU Cooling 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
