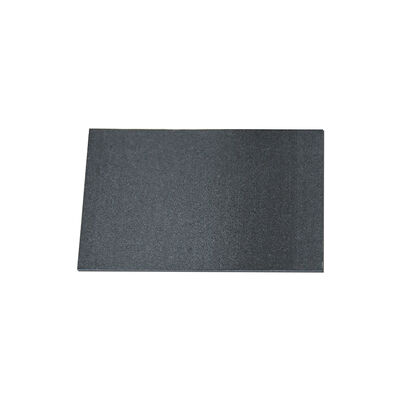

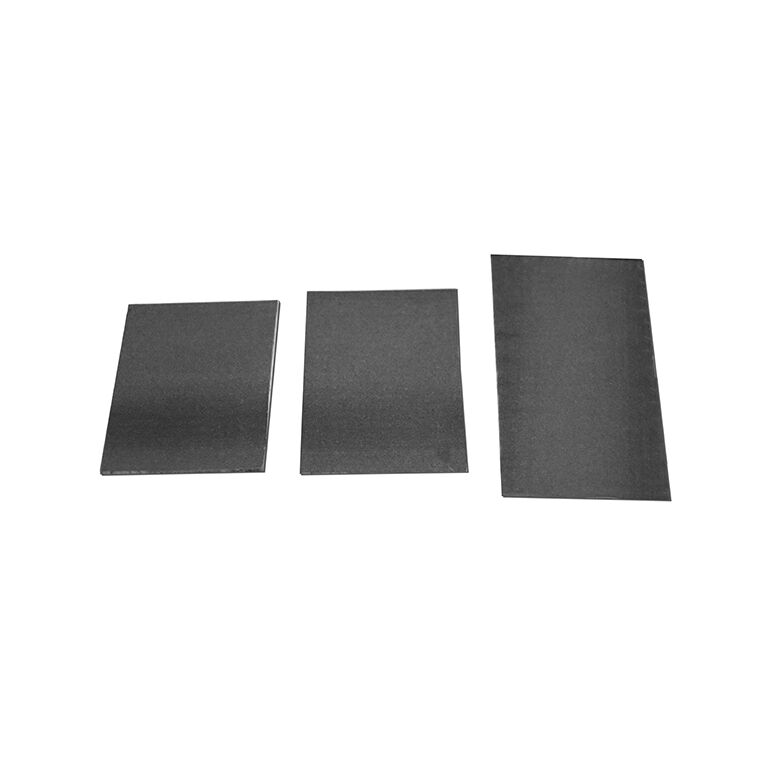

Works Under Low Pressure 25W/mK Carbon Fiber Thermal Pad For Wearable Devices

Produktdetails:

Place of Origin:	China
Markenname:	Ziitek
Zertifizierung:	RoHS
Model Number:	TS-TIR700-25

Zahlung und Versand AGB:

Minimum Order Quantity:	1000pcs
Preis:	0.1-10USD/pcs
Packaging Details:	241312cm cartons
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Kontakt

Ausführliche Produkt-Beschreibung

Products Name:	Works Under Low Pressure 25W/mK Carbon Fiber Thermal Pad For Wearable Devices	keywords:	Carbon Fiber Thermal Pad
Application:	Wearable Devices	Feature:	Ultra-low thermal resistance
Thermal conductiivity:	25W/m-K	Color:	Gray
Material:	Carbon fiber filled silicone	Density:	2.9g/cc
Hardness:	85±5/60±10 Shore 00

Works Under Low Pressure 25W/mK Carbon Fiber Thermal Pad For Wearable Devices

Company profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

Products introduction
TS-TIR^®700-25 Series series is a high-performance carbon-based thermal pad that combines highly thermally conductive carbon fiber with polymer silicone materials. Utilizing advanced manufacturing processes to precisely distribute thermal pathways, it achievese xceptional thermal conductivity, effectively reducing interfacial thermal resistance and enhancing heat dissipation efficiency. With its ultra-thin, lightweight design and mechanical flexibility, it is suitable for 5G equipment, high-performance chips, and other high heat flux applications.

Feature

>Good thermal conductivity 25w/mK

>Ultra-low thermal resistance
>works under low pressure.

>Non-insulating material with electrical conductivity

>Non-adhesive surface

Application

>Between chips and heat dissipation modules

>5G communication equipment
>Optoelectronics industry

>wearable devices

Typical Properties of TIR^®700-25 series
Product Name	TIR^®700-25		Test Method
Colour	Gray		Visual
Construction	Carbon fiber filled silicone		*****
Thickness range	0.01"~0.02" (0.3~0.5 mm)	0.04"~0.20"(1.0~5.0 mm)	ASTM D374
Hardness	85±5 Shore 00	60±10 Shore 00	ASTM D2240
Density	2.9g/cm3		ASTM D792
Operation Temperature	-40℃~ 200℃		******
Thermal impedance	25.0W/m-K		ASTM D5470
Specific heat capacity (J/g ℃)	0.75		ASTM E1269 @25℃
Flame Rating	V-0		UL94
RoHS	Compliant		IEC62321

Product Specification
Standard Thickness:0.01" (0.3mm), 0.02"(0.5mm), 0.04"(1.0mm), 0.06" (1.5mm), 0.08" (2.0mm), 0.10" (2.5mm), 0.12" (3.0mm)

Standard Size: 1.97"×1.97"(50.0mm x 50.0mm)

Works Under Low Pressure 25W/mK Carbon Fiber Thermal Pad For Wearable Devices 0

Packaging Details & Lead time

1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
